PERFECT UNION CO.

Downloads

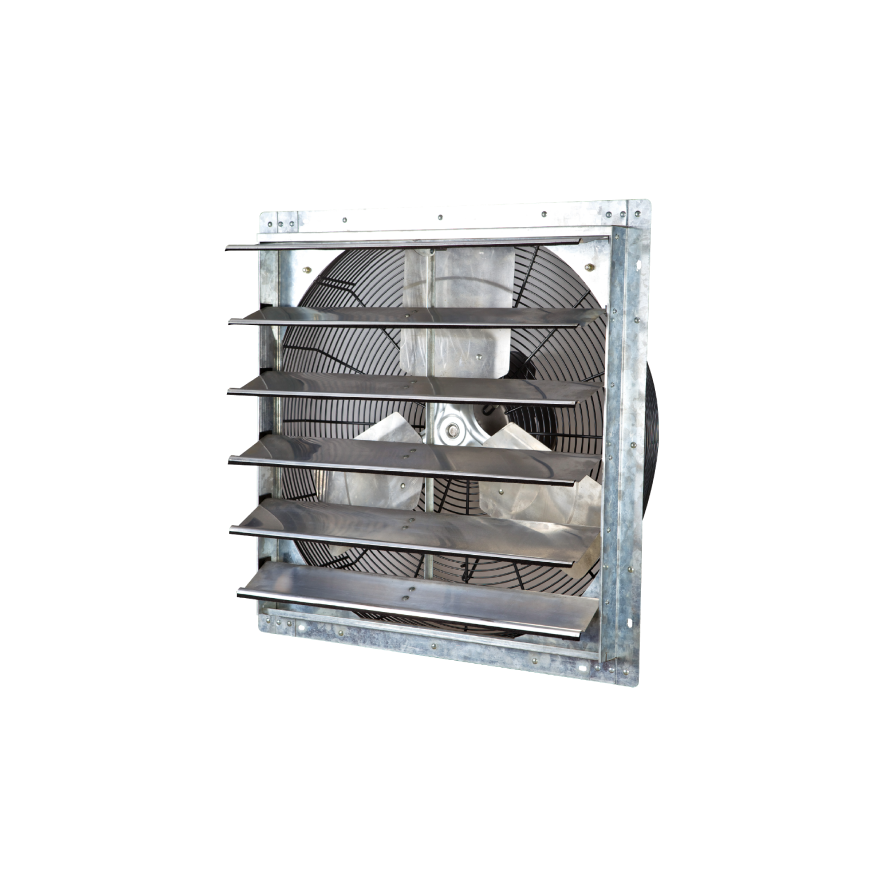

Speed Controllable Shutter Exhaust Fan

APB-24A

Product Description

4244CFM (0.000" SP)

VARIABLESettings

UL, CULCertifications

Specifications

Dimensions (in) height * width * depth	27 * 27 * 16 3/4
Weight (kg)	14.46
Full Load Amps	2.88
Watts	315
Certificatons	UL, CUL
Speed Control	VARIABLE
CFM @ 0.000" SP	4244
CFM @ 0.125" SP	2676
Propeller Diameter (in)	24
Motor RPM	1100
Motor HP	1/4
Bearing Type	BALL
Square Opening Req (in)	25
Sones @ 0.000" SP @ 5 ft	7
No. of Shutter Blades	6
Features

Downloads

Speed Controllable Shutter Exhaust Fan

APB-24A

Product Description

4244

CFM (0.000" SP)

VARIABLE

Settings

UL, CUL

Certifications

Specifications

height * width * depth
